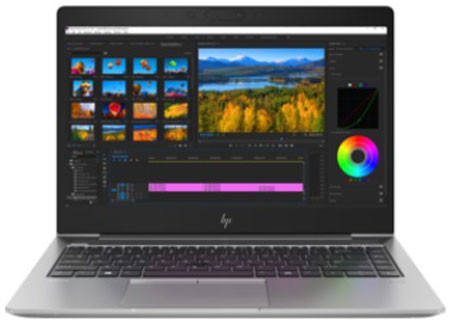

Figure : HP ZBook 14u G5 Mobile Workstation

Operating system
Feature | Description |
Preinstalled | Windows 10 Pro 641 Windows 10 Home 641 FreeDOS 1.2 |
Supported | Windows 10 Enterprise 641(available with a Volume Licensing Agreement) |
NOTE:
1Not all features are available in all editions or versions of Windows. Systems might require upgraded and/or separately purchased hardware, drivers, software, or BIOS update to take full advantage of Windows functionality. Windows 10 automatic updates are always enabled. ISP fees might apply and additional requirements might apply over time for updates.In accordance with Microsoft support policy, this product does not support Windows 8 or Windows 7. HP does not support the Windows 8 or Windows 7 operating system on products configured with Intel and AMD 7th generation or later processors, or provide any Windows 8 or Windows 7 drivers.
Processors
Specifications | Description |
Intel Core i7-8650U | 1.9 GHz 8 MB cache and 4 cores Up to 4.2 GHz with Intel Turbo Boost Technology |
Intel Core i7-8550U | 1.8 GHz 8 MB cache and 4 cores Up to 4.0 GHz with Intel Turbo Boost Technology |
Intel Core i5-8350U | 1.7 GHz 6 MB cache and 4 cores Up to 3.6 GHz with Intel Turbo Boost Technology |
Intel Core i5-8250U | 1.6 GHz 6 MB cache and 4 cores Up to 3.4 GHz with Intel Turbo Boost Technology |
Intel Core i5-7300U | 2.6 GHz 3 MB cache and 2 cores Up to 3.5 GHz with Intel Turbo Boost Technology |
Intel Core i5-7200U | 2.5 GHz 3 MB cache and 2 cores Up to 3.1 GHz with Intel Turbo Boost Technology |
Chipset | Intel Kaby Lake chipset integrated with processor |
Intel Core i5/Core i7 with vPro technology capable (optional) | Intel Virtualization Technology (Intel VT) Intel Active Management Technology (iAMT)
|
NOTE:
Multicore is designed to improve performance of certain software products. Not all customers or software applications necessarily benefit from use of this technology. Performance and clock frequency vary depending on application workload and hardware and software configurations. Intel numbering is not a measurement of higher performance.Intel Turbo Boost is based on maximum GHz for a single core.
Graphics
Feature | Description |
Integrated | Intel UHD Graphics 630
|
Discrete | AMD Radeon Pro WX 3100 (2 GB dedicated GDDR5)
Microsoft DirectX 12 (Shader Model 5.0) and OpenGL 4.4 capable AMD Enduro Technology supported |
Displays
Feature | Description |
Internal | 35.56 cm (14.0 in) diagonal LED backlit FHD UWVA eDP anti-glare (1920 x 1080) 35.56 cm (14.0 in) diagonal LED backlit FHD UWVA eDP with PSR anti-glare (1920 x 1080) 35.56 cm (14.0 in) diagonal Touch LED-backlit FHD UWVA eDP (1920 x 1080) 35.56 cm (14.0 in) diagonal Touch LED-backlit FHD UWVA eDP with PSR, anti-glare and SureView Privacy filter (1920 x 1080) 35.56 cm (14.0 in) diagonal LED backlit UHD UWVA eDP with PSR (3840 x 2160) |
External | Up to 30-bit (2^30) per pixel (deep color with a total of 1,073,741,824 color variations) |
Supported | DisplayPort (DP) with Multi-stream Transport (MST) (supported resolutions) Up to UHD 3840 x 2160 with 24/30-bit color depth at 60 Hz WUXGA (1920 x 1200) monitors, with 24/30-bit color depth up to 120 Hz DVI-D DVI (single link) support requires a DP-to-DVI adapter (sold separately) Dual-link DVI is supported with an active USB powered adapter (sold separately) |
NOTE:
Resolutions are dependent upon monitor capability and resolution and color depth settings.
Storage and drives
Feature | Description |
Primary storage bay | M.2 SATA SED SSD 512 GB SATA-3 SS TLC FIPS-140-2 Solid State Drive HP Z Turbo Drive (NVMe PCIe SSD) 256 GB PCIe Gen 3×4 TLC Solid State Drive 512 GB PCIe Gen 3×4 TLC Solid State Drive 1 TB PCIe Gen 3×4 TLC Solid State Drive 256 GB PCIe Gen 3×4 TLC Opal 2 Solid State Drive 512 GB PCIe Gen 3×4 TLC Opal 2 Solid State Drive 256 GB PCIe Gen 3×4 MLC Solid State Drive 512 GB PCIe Gen 3×4 MLC Solid State Drive 1 TB PCIe Gen 3×4 MLC Solid State Drive |
Drive controllers | M.2 Storage Bay (SATA) SATA-3 for SSD HP Z Turbo Drive PCIe NVMe SSD |
NOTE:
For solid state drives or hard drives, GB = 1 billion bytes. TB = 1 trillion bytes. Actual formatted capacity is less. Up to 30 GB (for Windows 10) is reserved for system recovery software.
Memory
Specification | Description |
Standard | 32 GB DDR4 1.2 V non-ECC SDRAM (transfer rates up to 2400 MT/s) (2) SODIMM slots supporting dual-channel memory 4 GB, 8 GB, and 16 GB SODIMMs Maximized dual-channel performance requires SODIMMs of the same size and speed in both memory channels |
Maximum | Up to 32 GB Optional 16 GB SODIMMs in 2 slots |
NOTE:
Maximum memory capacities assume Windows 64-bit operating systems or Linux. With Windows 32-bit operating systems, memory above 3 GB might not all be available due to system resource requirements.Due to the non-industry standard nature of some third-party memory modules, we recommend HP branded memory to ensure compatibility. If memory speeds are mixed, the system performs at the lower memory speed.
Ports/slots
Specifications | Description |
Ports | Left side (1) USB 3.0 charging port (1) Security lock slot Right side (1) USB 3.1 Gen 1 (1) USB 3.0 port (1) Headphone/microphone combo jack (1) RJ-45/Ethernet port (1) Side docking connector (1) Power connector |
Digital media slots | (1) Integrated SD flash media slot
(1) Integrated smart card reader |
Audio/multimedia
Feature | Description |
Audio | Bang & Olufsen audio Integrated stereo speakers Integrated microphone (dual-microphone array when equipped with optional webcam) Button for volume mute Function keys for volume up and down Combo microphone-in/stereo headphone-out jack |
Webcam | 720 HD webcam with IR (optional near infrared imaging) Microsoft Hello certification Microsoft Skype for Business HD format (widescreen 16:9) Supports videoconferencing and still image capture High quality fixed focus lens Video capture at various resolutions up to 1280 x 720 resolution (720p) and up to 30fps M-JPEG compression supports higher frame rates for video capture and videoconferencing Improved low light sensitivity Improved dynamic range
|
Keyboard/pointing devices/buttons/function keys
Feature | Description |
Keyboard | General features Optional backlit keyboard Function key control to toggle backlit brightness setting: off/full/half brightness Spill-resistant with drain (thin layer of Mylar film under the keyboard) 86-key compatible keyboard U.S. and International key layouts available Full-pitch key layout Editing keys Both left and right control and alt keys Function keys 18.7 x 18.4 mm key pitch (center-to-center spacing) Hot keys for instant access to power conservation and brightness |
Pointing devices | Point stick with two additional point stick buttons
|
Buttons | Share/present Call answer Call end |
Function keys | F1 – Display switching F2 – Blank or SureView F3 – Brightness down F4 – Brightness up F5 – Audio mute F6 – Volume down F7 – Volume up F8 – Microphone mute F9 – Backlit toggle F10 – Numlk F11 – Wireless F12 – Calendar |
Networking/communication
Feature | Description |
Communications | Integrated Intel I219-LM Gigabit Network Connection (vPro configurations) Integrated Intel I219-V Gigabit Network Connection (non-vPro configurations)
|
Broadband Wireless (WWAN) | Requires a Windows operating system (not available in all countries/regions) Factory configurable only |
Integrated Bluetooth | Combined with the supported wireless LAN option Factory configurable only |
802.11 Wireless LAN | Intel Dual Band Wireless-AC 8265 802.11 a/b/g/n/ac (2×2) WiFi with Bluetooth 4.2 Combo Adapter (vPro) Intel Dual Band Wireless-AC 8265 802.11 a/b/g/n/ac (2×2) WiFi with Bluetooth 4.2 Combo Adapter (non-vPro)
|
Wireless WAN – Mobile Broadband (optional) | HP lt4120 Qualcomm Snapdragon X5 LTE Mobile Broadband Module HP It4132, LTE/HSPA+ 4G Mobile Broadband Module HP hs3210 HSPA+ Mobile Broadband Module
|
Near Field Communications (NFC) | HP Module with NXP NFC Controller NPC100 |
NOTE:
Secure, integrated wireless LAN and wireless WAN options supports the latest industry standards.
Software/security
Specification | Description |
BIOS | HP BIOSphere Gen3 (requires Intel 7th generation processors) HP Sure Start Gen3 (requires Intel 7th generation processors) HP DriveLock/HP Automatic DriveLock BIOS Update via Network Master Boot Record Security Power On Authentication Secure Erase (methods outlined in the National Institute of Standards and Technology Special Publication 800-88) Absolute Persistence Module1 Pre-boot Authentication |
Multi media | Cyberlink Power Media Player |
Communication/connectivity | HP Mobile Connect Pro
Native Miracast support HP LAN-WLAN Protection HP MAC Address Manager (select models only) HP Wireless Wakeup (select models only) HP SureConnect |
HP Value add software | HP 3D DriveGuard HP ePrint Driver with JetAdvantage2 HP Hotkey Support HP Recovery Manager HP Jumpstart HP Support Assistant (requires Windows and internet access) HP Noise Cancellation software HP Performance Advisor HP Remote Graphics Software HP Velocity |
Microsoft products | Buy Office Bing Search Skype (not available in China) |
Manageability | HP Driver packs (available for download) HP SoftPaq Download Manager (SDM) HP System Software Manager (SSM) (available for download) HP BIOS Configuration Utility (BCU) (available for download) HP Client Catalog (available for download) HP Management Integration Kit for Microsoft SCCM (available for download) HP Image Assistant LANDESK Management (subscription required)
|
Client Security software | Microsoft Defender (opt in and internet connection required for updates) HP WorkWise app (available as a free download on Google Play) HP Client Security Suite Gen3 (requires Windows and Intel 7th generation processors) HP Security Manager (including Credential Manager and Password Manager) HP Fingerprint Sensor Power On Authentication HP Device Access Manager |
Security | For Windows 10, Trusted Platform Module (TPM) 2.0 (Infineon SLB9670) Common Criteria EAL4+ Certified HP Fingerprint Reader
|
Workstation ISV certifications | Go to the Workstation ISV Certifications webpage to see current certifications |
Other standard security features | Integrated Smart Card Reader One-Step Logon Security lock slot Support for Intel AT |
Optional security features | HP Fingerprint sensor Absolute Data Protect with GPS tracking (requires HP Mobile Broadband Module)
|
NOTE:
1Absolute agent is activated when customers activate a purchased subscription. Subscriptions can be purchased for terms ranging multiple years. Service is limited, check with Absolute for availability outside the U.S. The Absolute Recovery Guarantee is a limited warranty. Certain conditions apply. Data Delete is an optional service provided by Absolute Software. If utilized, the Recovery Guarantee is null and void. In order to use the Data Delete service, customers must first sign a Pre-Authorization Agreement and either obtain a PIN or purchase one or more RSA SecurID tokens from Absolute Software.2Requires an Internet connection to HP web-enabled printer and HP ePrint account registration. Requires optional broadband module. Broadband use requires separately purchased service contract. Check with service provider for coverage and availability in your area. Separately purchased data plans or usage fees might apply. Print times and connection speeds might vary.
NOTE:
HP Cloud Recovery download tool (Cloud Recovery Client) is available under Software and Drivers section on the support page.
Power
Specifications | Description |
Power supply | HP 65W Slim Smart AC Adapter |
Primary battery | HP 3-cell Long Life Polymer Battery (50 WHr) |
Battery life | Battery life up to 10 hours
|
Power conservation | AMD Polaris technology Hibernation Standby ACPI compliance |
Physical specifications
Specifications | Description |
Dimensions (W x D x H) | 326.14 x 234.19 x 18.03 mm (12.84 x 9.22 x 0.71 in)
|
Weight | 1.48 kg (3.26 lb)
|
Environmental
Feature | Description |
Certifications | US ENERGY STAR (select models only) Configurations of the HP ZBook 14u G5 that are ENERGY STAR certified are identified as HP ZBook 14u G5 ENERGY STAR on HP websites. Low Halogen
IT ECO declaration EPEAT Gold registered where applicable (registration varies by country/region)
|
Planned industry standard certifications | UL CSA FCC compliance ICES Australia/NZ A-Tick compliance CCC Japan VCCI compliance KC BSMI CE marking compliance MIL STD |
Stand-alone power requirements (AC power) | Nominal operating voltage 19.5 V DC at 3.3 A Average operating power (AMD FirePro Graphics) 16.8 W (Windows 10 64-bit) Maximum operating power (NVIDIA Quadro Graphics) < 65 W |
Temperature | Operating 0° to 35° C (32° to 95° F) (not writing optical) 5° to 35° C (41° to 95° F) (writing optical) Non-operating -20° to 60° C (-4° to 140° F) |
Relative humidity | Operating 10% to 90%, non-condensing Non-operating 5% to 95%, 38.7° C (101.6° F) maximum wet bulb temperature |
Shock | Operating 40 G, 2 ms, half-sine Non-operating 200 G, 2 ms, half-sine |
Random vibration | Operating 0.75 grms Non-operating 1.50 grms |
Altitude (unpressurized) | Operating -15.24 to 3,048 m (-50 to 10,000 ft) Non-operating -15.24 to 12,192 m (-50 to 15,000 ft) |
