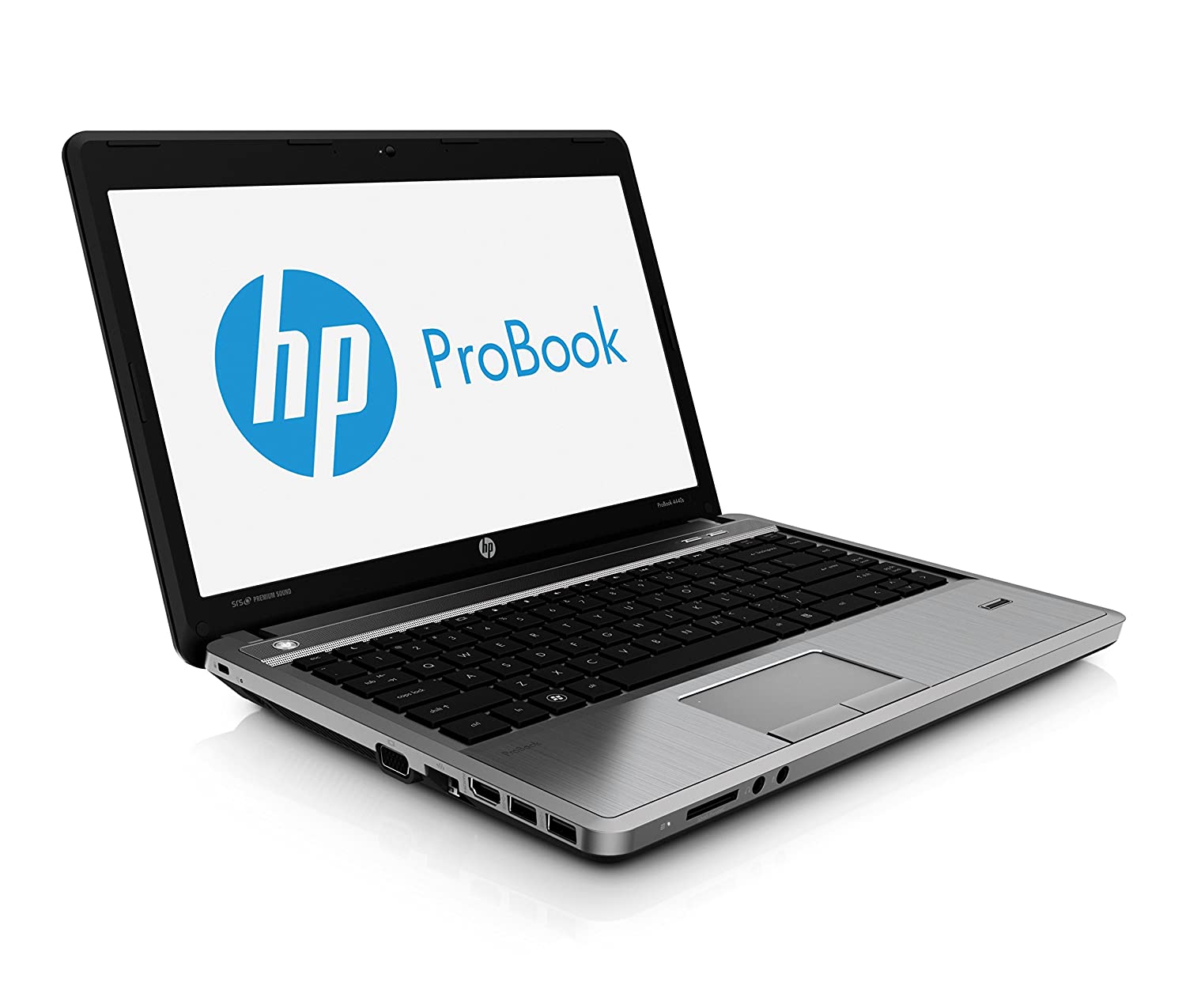

HP ProBook 4440s Notebook PC is optimized for Genuine Windows 7, these notebooks are ideal for SMBs with Intel UMA Graphics and AMD Discrete Graphics ATI Thames PRO M2. They offer multimedia tools, easy-to-use security and a sleek, vertical brushed aluminum casing. Options include discrete graphics and battery-saving mode, and two display sizes.
Product features
Feature
|
Description
|
Display1
|
|
Processor
|
|
Chipset
|
Mobile Intel HM76
|
Graphics
|
Integrated:
Discrete:
AMD Radeon HD 7650M, with 1GB and 2GB dedicated DDR3 video memory
|
Memory3
|
|
Storage5
|
Hard drives
HP 3D DriveGuard (Windows only)
The hard drive is mounted directly to the notebook frame, reducing the transmission of shock to the hard drive.
|
Keyboard
|
The HP spill-resistant keyboard is designed using a thin layer of Mylar film under the keyboard. The 101/102-key compatible keyboard features a full-pitch key layout with desktop keyboard features, such as editing keys, both left and right control and alt keys, and function keys. US and International key layouts are available. The HP ProBook 4540s include a separate numeric keypad.
|
Pointing device
|
Touchpad with gestures support, on/off button with LED indicator, two-way scroll, two pick buttons.
|
Buttons and function keys
|
Separate launch buttons provide easy access to wireless on/off and HP WebBrowser. Function keys provide control of features including: standby mode, display brightness, external display, HP Power Assistant, volume mute, volume down, volume up, and media control.
|
Audio/Multimedia
|
Audio
Webcam
Optional 720p HD webcam:
|
Networking/Communications
|
Wireless
Support for a broad range of secure, integrated wireless LAN and wireless WAN options featuring support for the latest industry standards. Broadband Wireless (WWAN) requires a Windows operating system and is available in select countries as a standard, factory configurable feature only. Integrated Bluetooth is also available (factory configurable only) and can be combined with any of the supported wireless LAN and wireless WAN options.
Broadband Wireless (WWAN)
Wireless LAN (WLAN)
Communications
Realtek 10/100/10006 Ethernet Controller
|
|
Storage and drive specifications
Specifications
|
Description
|
||||||
Internal storage
|
|||||||
750GB 7200 rpm SATA hard drive
|
500GB 7200 rpm SATA hard drive
|
320GB 7200 rpm SATA hard drive
|
750GB 5400 rpm SATA hard drive
|
640GB 5400 rpm SATA hard drive
|
500GB 5400 rpm SATA hard drive
|
320GB 5400 rpm SATA hard drive
|
|
Drive weight
|
115 g (0.25 lb)
|
115 g (0.25 lb)
|
115 g (0.25 lb)
|
125 g (0.27 lb) or 101 g (0.22 lb)
|
101 g (0.22 lb)
|
101 g (0.22 lb)
|
101 g (0.22 lb)
|
Capacity
|
750GB
|
500GB
|
320GB
|
750GB
|
640GB
|
500GB
|
320GB
|
Height
|
9.5 mm (0.37 in)
|
9.5 mm (0.37 in)
|
9.5 mm (0.37 in)
|
12.7 mm (0.50 in) or 9.5 mm (0.37 in)
|
9.5 mm (0.37 in)
|
9.5 mm (0.37 in)
|
9.5 mm (0.37 in)
|
Width
|
70 mm (2.75 in)
|
70 mm (2.75 in)
|
70 mm (2.75 in)
|
70 mm (2.75 in)
|
70 mm (2.75 in)
|
70 mm (2.75 in)
|
70 mm (2.75 in)
|
Interface
|
ATA-8, SATA 2.6, 3.0 Gb/s, NCQ
|
ATA-8, SATA 2.6, 3.0 Gb/s, NCQ
|
ATA-8, SATA 2.6, 3.0 Gb/s, NCQ
|
ATA-8, SATA 2.6, 3.0 Gb/s, NCQ
|
ATA-8, SATA 2.6, 3.0 Gb/s, NCQ
|
ATA-8, SATA 2.6, 3.0 Gb/s, NCQ
|
ATA-8, SATA 2.6, 3.0 Gb/s, NCQ
|
Transfer rate – Synchronous (maximum)
|
300 MB/s (drive capability)
|
300 MB/s (drive capability)
|
300 MB/s (drive capability)
|
300 MB/s (drive capability)
|
300 MB/s (drive capability)
|
300 MB/s (drive capability)
|
300 MB/s (drive capability)
|
Seek time (typical reads, including settling)
|
|
|
|
|
|
|
|
Rotational speed
|
7200 rpm
|
7200 rpm
|
7200 rpm
|
5400 rpm
|
5400 rpm
|
5400 rpm
|
5400 rpm
|
Logical blocks
|
1,465,149,168
|
976,773,168
|
625,142,448
|
1,465,149,168
|
1,250,263,728
|
976,773,168
|
625,142,448
|
Operating temperature
|
0° to 60°C (32° to 140°F) [case temp]
|
0° to 60°C (32° to 140°F) [case temp]
|
0° to 60°C (32° to 140°F) [case temp]
|
0° to 60°C (32° to 140°F) [case temp]
|
0° to 60°C (32° to 140°F) [case temp]
|
0° to 60°C (32° to 140°F) [case temp]
|
0° to 60°C (32° to 140°F) [case temp]
|
Features
|
ATA security
|
ATA security
|
ATA security
|
ATA security
|
ATA security
|
ATA security
|
ATA security
|
Optical drives
|
|||||||
DVD+/-RW SuperMulti DL drive
|
Blu-ray ROM DVD+/-RW SuperMulti DL drive
|
||||||
Access times
|
Random
|
Random
|
|||||
Max data transfer rate
|
|
|
|||||
Transfer mode
|
UDMA Mode 5
|
UDMA Mode 5
|
|||||
Interface
|
Gen 1 SATA
|
Gen 1 SATA
|
|||||
Supported media (read)
|
CD-DA, CD-TEXT, CD-ROM, CD-ROM XA, MIXED MODE CD, CD-I, CD-I Bridge (Photo-CD, Video CD), Multisession CD (Photo-CD, CD-EXTRA, Portfolio, CD-R, CD-RW), CD-R, CD-RW, DVD-ROM (DVD-5, DVD-9, DVD-10, DVD-18), DVD-R, DVD-RW, DVD+R, DVD+RW, DVD-RAM
|
CD-DA, , CD-TEXT, CD-ROM, CD-ROM XA, MIXED MODE CD, CD-I, CD-I Bridge (Photo-CD, Video CD), Multisession CD (Photo-CD, CD-EXTRA, Portfolio, CD-R, CD-RW), CD-R, CD-RW, DVD-ROM (DVD-5, DVD-9, DVD-10, DVD-18), DVD-R, DVD-RW, DVD+R, DVD+RW. DVD-RAM, BD-ROM, BD-R, BD-RE
|
|||||
Supported media (write)
|
CD-R, CD-RW, DVD+R, DVD+RW, DVD-R, DVD-RW, DVD-RAM, DVD+R DL, DVD-R DL
|
CD-R, CD-RW, DVD+R, DVD+R DL, DVD+RW, DVD-R, DVD-R DL, DVD-RW, DVD-RAM
|
|||||
Max media capacity (read)
|
8.5GB
|
50.0GB
|
|||||
Max media capacity (write)
|
8.5GB
|
8.5GB
|
|||||
Transport
|
Tray loading
|
Tray loading
|
Network/Communication specifications
Specifications
|
Description
|
|
Networking
|
||
Integrated Realtek RTL8151FH-CG 10/100/1000 NIC
|
||
Ethernet features
|
|
|
Power management
|
|
|
Performance features
|
|
|
Manageability
|
|
|
Interface
|
PCI Express 1.1 x1 to fully support ASPM L0s/L1 and CLKREQ
|
|
NIC device driver name
|
Realtek PCIe GBE Ethernet Family Controller
|
|
Mobile broadband module
|
||
HP un2430 EV-DO/HSPA/CDMA mobile broadband module
|
HP hs2350 HSPA+ mobile broadband module
|
|
Technology/Operating bands
|
|
|
Wireless protocol standards
|
|
|
Wireless parametric standards
|
Complies with 3GPP specifications
|
Complies with 3GPP specifications
|
Maximum data rates
|
UMTS (HSPA) – 21 Mb/s (Download), 5.76 Mb/s (Upload)
|
UMTS (HSPA) – 21 Mb/s (Download ), 5.76 Mb/s (Upload)
|
GPS
|
Standalone, A-GPS (Internet- and Network assisted)
|
Standalone, A-GPS (Internet- and Network assisted)
|
GPS bands
|
1575.42 MHz (± 1.023 MHz)
|
1575.42 MHz (± 1.023 MHz)
|
Maximum output power
|
|
|
Maximum power consumption
|
2750 mA (peak); 1100 mA (average)
|
2000 mA (peak); 600 mA (average)
|
Power consumption, Idle not connected
|
20 mA
|
5 mA
|
Power management
|
|
|
Antenna type
|
Dual high efficiency 5 band antenna with spatial diversity, mounted in the display enclosure
|
Dual high efficiency 5 band antenna with spatial diversity, mounted in the display enclosure
|
Form factor
|
PCI-Express MiniCard, USB 2.0 interface
|
PCI-Express MiniCard, USB 2.0 interface
|
Weight
|
11.5 g (.025 lb)
|
< 12 g (< .026 lb)
|
Dimensions (Length x Width x Thickness)
|
51 x 30 x 5 mm (2.01 x 1.18 x 0.18 in)
|
51 x 30 x 5 mm (2.01 x 1.18 x 0.18 in)
|
Voltage, operating
|
3.3 v +/- 10%
|
3.3v +/- 9%
|
Temperature, operating (from TIA/EIA/IS-98-D)
|
|
|
Temperature, non-operating, 96 hours (from MIL-STD 202 Method 108)
|
-40° to 85°C (-40° to 185°F)
|
–30° to 85°C (–22° to 185°F)
|
Humidity, non-operating
|
95% relative humidity for 48 hours @ 85°C (185°F) (non-condensing)
|
85% relative humidity for 48 hours @ 85°C (185°F) (non-condensing)
|
Configuration utilities
|
HP Connection Manager
|
HP Connection Manager
|
LED activity
|
|
|
Intel Centrino Advanced -N 6235 802.11a/g/n (2×2) Bluetooth v4.0 combo
|
Atheros AR9485 802.11 b/g/n WiFi adapter (1×1)
|
|
Wireless LAN standards
|
|
|
Interoperability
|
|
Wi-Fi certified
|
Frequency band data rates
|
|
|
Modulation
|
|
|
Security1
|
|
|
Sub-channels
|
Multinational support with frequency bands and channels compliant to local regulations
|
Multinational support with frequency bands and channels compliant to local regulations
|
Media access protocol
|
CSMA/CA (Collision Avoidance) with ACK
|
CSMA/CA (Collision Avoidance) with ACK
|
Network architecture models
|
|
|
Roaming
|
IEEE 802.11 compliant roaming between access points
|
IEEE 802.11 compliant roaming between access points
|
Output power2
|
13.5 dBm, nominal
|
13.5 dBm, nominal
|
Power consumption
|
|
|
Power management
|
|
|
Receiver sensitivity3
|
|
|
Antenna type
|
High efficiency dual band antenna with spatial diversity, mounted in the display enclosure
|
High efficiency antenna with spatial diversity, mounted in the display enclosure
|
Form factor
|
PCI-Express Half-MiniCard 1.2
|
PCI-Express Half-MiniCard 1.2
|
Weight
|
6 g (0.013 lb)
|
6 g (0.013 lb)
|
Dimensions
|
4.75 x 26.8 x 30 mm (0.19 x 1.06 x 1.18 in)
|
4.75 x 26.8 x 30 mm (0.19 x 1.06 x 1.18 in)
|
Operating voltage
|
3.3 v +/- 10%
|
3.3 v +/- 9%
|
Temperature
|
Operating: -10° to 70°C (14º to 158ºF)
Non-operating: -40° to 80°C (-40° to 176°F)
|
Operating: -10° to 70°C (14º to 158ºF)
Non-operating: -40° to 80°C (-40° to 176°F)
|
Humidity
|
Operating: 10% to 90% (non-condensing)
Non-operating: 5% to 95% (non-condensing)
|
Operating: 10% to 90% (non-condensing)
Non-operating: 5% to 95% (non-condensing)
|
Altitude
|
Operating: 3,048 m (0 to 10,000 ft)
Non-operating: 15,240 m (0 to 50,000 ft)
|
Operating: 3,048 m (0 to 10,000 ft)
Non-operating: 15,240 m (0 to 50,000 ft)
|
Configuration Utility4
|
Microsoft Windows XP
|
NA
|
LED activity
|
LED Off – Radio OFF
Solid LED On – Radio ON
|
LED Off – Radio OFF
Solid LED On – Radio ON
|
Bluetooth 4.0 Wireless Technology
|
||
Bluetooth specification
|
2.1+EDR, 3.0+HS, 4.0 compliant
|
|
Dimensions
|
30 x 6.5 x 3.25 mm (1.18 x 0.26 x 0.13 in)
|
|
Frequency band
|
2402 to 2480 MHz
|
|
Number of available channels
|
79 (1 MHz) available channels
|
|
Data rates and throughput
|
|
|
Transmit power
|
Max 4 dBm (Bluetooth Class II)
|
|
Receiver sensitivity
|
Better than -80 dBM at 0.1 % raw bit error rate
|
|
Power consumption
|
|
|
Antenna
|
Internally integrated within module
|
|
Range
|
Up to 10 m (33 ft)
|
|
Electrical interface
|
|
|
Bluetooth software
|
|
|
Link topology
|
Point to Point, Multipoint Pico Nets up to 7 slaves
|
|
Security
|
Full support of Bluetooth security provisions
|
|
Power management
|
|
|
Certifications
|
All necessary regulatory approvals for supported countries, including:
|
|
Temperature
|
Operating: –20° to 70°C (–4° to 158°F)
Non-operating: –40° to 80°C (–40° to 176°F)
|
|
Humidity
|
Operating: 10% to 90%
Non-operating: 5% to 95%
|
|
Altitude
|
Operating: 4,572 m (15,000 ft)
Non-operating: 12,192 m (40,000 ft)
|
|
Bluetooth profiles supported
|
|
