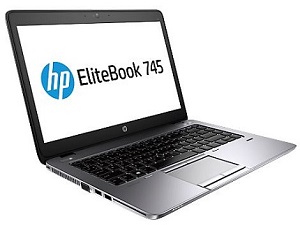

HP EliteBook 745 G3 Notebook PC
Product features
Feature
|
Description
|
Product number
|
L9Z80AV
|
Processor
|
AMD PRO A8 -8600B (1.6 GHz, up to 3.0 GHz, 2MB Cache, 4 Cores) with AMD Radeon R6 Graphics
AMD PRO A10-8700B (1.8 GHz, up to 3.2 GHz, 2MB Cache, 4 Cores) with AMD Radeon R6 Graphics
AMD PRO A12-8800B (2.1 GHz, up to 3.4 GHz, 2MB Cache, 4 Cores) with AMD Radeon R7 Graphics
|
Chipset
|
Chipset is integrated with processor
|
Graphics
|
AMD PRO A8 -8600B with AMD Radeon R6 Graphics
AMD PRO A10-8700B with AMD Radeon R6 Graphics
AMD PRO A12-8800B with AMD Radeon R7 Graphics
AMD Vivid Color Support
AMD UMA Graphics – with shared video memory
|
Display
|
Non-Touch
14.0 inch diagonal LED backlight HD1 Slim eDP SVA Anti-glare (1366 x 768)
14.0 inch diagonal LED backlight HD1 Slim eDP SVA Anti-glare (1366 x 768) with camera
14.0 inch diagonal LED backlight FHD Slim eDP SVA Anti-glare (1920 x 1080)
14.0 inch diagonal LED backlight FHD Slim eDP SVA Anti-glare (1920 x 1080) with camera
14.0 inch diagonal LED backlight QHD UltraSlim eDP + PSR UWVA Anti-glare (2560 x 1440)
14.0 inch diagonal LED backlight QHD UltraSlim eDP + PSR UWVA Anti-glare (2560 x 1440) camera
Touch
14.0 inch diagonal LED backlight FHD Slim eDP SVA (1920 x 1080) Touch with camera
VGA
Port supports resolutions up to 1900 x 1200 external resolution at 60 Hz
DisplayPort
Supports resolutions up to 4096 x 2160 at 60Hz
Resolutions are dependent upon monitor capability, and resolution and color depth settings.
Number of Displays supported with Docking
Supports 3 independent displays if used with optional HP Ultraslim Docking Station.
|
Storage and drives
|
Primary storage SATA, 2.5 inch hard drives
500 GB 7200rpm Self Encrypting Drive (FIPS-140-2) (Opal 2)
500 GB 7200rpm hard drive
500 GB 7200rpm Self-Encrypting drive (Opal 2)
1 TB 5400rpm hard drive
500 GB Hybrid, 8 GB cache
Mini Card Solid State Drive
M.2 (NGFF) 2280 Solid State Drive
128 GB SATA-3 TLC Solid State Drive
180 GB SATA-3 MLC Solid State Drive
180 GB SATA-3 Self-Encrypting (Opal 2) MLC Solid State Drive
240 GB SATA-3 MLC Solid State Drive
256 GB SATA-3 TLC Solid State Drive
256 GB SATA-3 Self-Encrypting (Opal 2) MLC Solid State Drive
256 GB PCIe-3×4 NVMe Solid State Drive (planned to be available December 2015)
512 GB SATA-3 TLC Solid State Drive (planned to be available December 2015)
HP 3D DriveGuard (Windows and Hard Drives only)
The hard drive is mounted directly to the notebook frame, reducing the transmission of shock to the hard drive
|
Memory
|
Standard
DDR3L PC3L-12800 (Transfer rates up to 1600 MT/s)
Two SODIMM slots supporting dual-channel memory
Both slots are customer accessible / upgradeable
Supports
4096 MB Total System Memory (4096 MB x 1)
8192 MB Total System Memory (4096 MB x 2)
8192 MB Total System Memory (8192 MB x 1)
16384 MB Total System Memory (8192 MB x 2)
Maximum
Up to 16 GB
Dual-channel
Maximized dual-channel performance requires SODIMMs of the same size and speed in both memory slots.
|
Networking/communications
|
Broadband Wireless (WWAN)
HP lt4120 Qualcomm SnapdragonT X5 LTE Mobile Broadband Module 1, 2
HP hs3110 HSPA+ Mobile Broadband Module1, 2
Wireless LAN (WLAN) Via MiniCard
Realtek RTL8188EE 802.11b/g/n (1×1) (Not available for Indonesia)
Broadcom 943228 Dual Band 802.11 a/b/g/n (2×2) Bluetooth 4.0 Combo
Intel 7265 802.11ac(2×2) + Bluetooth 4.1 Combo (Not available for Indonesia)
Near Field Communication (NFC)1
HP Module with NXP NFC Controller NPC100
Support for Miracast
Communications
Broadcom 5762 10/100/1000 Ethernet NIC with DASH Support
|
Audio/multimedia
|
Audio
Audio by Bang & Olufsen
HP Clear Sound Amp
HP Noise Reduction Software
Digital Microphones (Dual Array)
2 Premium Stereo Speakers
Webcam
Optional 720p webcam
|
Keyboards/pointing devices / buttons
|
Pointing Device
Glass touchpad
On/Off button
Taps enabled as default
Gestures enabled by default – 2 finger scrolling, 2 finger zoom (pinch)
Buttons and Function Keys
F1 – Sleep
F2 – Blank
F3 – Backlit Toggle
F4 – Display Switching
F5 – Brightness Down
F6 – Brightness Up
F7 – Blank
F8 – Volume Down
F9 – Volume Up
F10 – Mic Mute
F11 – Blank
F12 – Num Lock
|
Ports/slots
Specification
|
Description
|
Ports and slots
|
(1) USB 3.0 charging port
(1) USB 3.0 port
(1) USB basic type-C
DisplayPort
VGA
RJ-45 / Ethernet
Docking connector
Headphone/microphone combo
AC port
|
Expansion slots
|
External micro SIM slot
SD media reader slot supports SD, SDHC, SDXC
|
Internal card expansion
|
One NGFF slot (2230) for WLAN
One NGFF slot (2280) for SSD
|
Power
Specification
|
Description
|
Power supply
|
HP 45 W Smart AC adapter (Not available for Asia, China and India)
HP 45 W Smart AC 2-prong adapter (Japan only)
HP 65 W EM Smart AC Adapter (India only)
|
AC and DC power cords
|
1.8 m (5.9 ft)
|
Battery
|
HP 3-cell Long Life Li-Ion (46 WHr)
|
Physical specifications
Specification
|
Description
|
Weight
|
Starting at 1.54 kg (3.41 lb)
|
Dimensions (W x D x H)
|
Non-touch
33.8 x 23.7 x 1.89 cm (13.3 x 9.3 x 0.74 in)
Touch
33.8 x 23.7 x 2.02 cm (13.3 x 9.3 x 0.80 in)
|
Software/OS
Specifications
|
Description
|
Operating system
|
Preinstalled
Windows 10 Pro 64
Windows 10 Home 64
Windows 8.1 Pro 64
Windows 8.1 64
Windows 7 Professional 64 (available through downgrade rights from Windows 10 Pro)
Windows 7 Professional 32 (available through downgrade rights from Windows 10 Pro)
Windows 7 Professional 64
Windows 7 Professional 32
FreeDOS 2.0
NeoKylin Linux 64
Web supported
Windows 10 Pro 64
Windows 10 Home 641
Windows 10 Enterprise 64
Windows 8.1 Pro 64
Windows 8.1 64
Windows 8.1 Enterprise 64
Windows 7 Professional 64
Windows 7 Professional 32
Windows 7 Enterprise 64
Windows 7 Enterprise 32
|
BIOS
|
HP BIOSphere
HP SureStart
HP DriveLock, HP Automatic DriveLock
HP BIOS Protection
BIOS Update via Network
Master Boot Record Security
Power On Authentication
Pre-Boot Security
Secure Erase
Hybrid Boot
Measure Boot
Secure Boot
Absolute Persistence Module
|
Multimedia
|
Cyberlink Power DVD, BD
Cyberlink YouCam BE (Windows 7 only)
|
Communication
|
HP GPS and Location (Windows 7 only)
HP Connection Manager with support for HP Mobile Connect (Windows 7 only)
HP Mobile Connect (Windows 8.1 & later)
Native Miracast Support
|
HP Value Add Software
|
HP 3D DriveGuard
HP ePrint Driver
HP Pixel Sharp
HP Hotkey
HP Recovery Manager
HP Recovery Disc Creator
HP Registration App (Windows 8.1 only)
HP Support Assistant
HP Noise Reduction Software
|
3rd Party
|
Foxit PhantomPDF Express for HP
|
Microsoft products
|
Buy Office
Bing Search
Skype
|
Manageability
|
Preinstalled
Not preinstalled (available on manageability website)
|
Client security software
|
HP Drive Encryption
HP Security Manager
Microsoft Security Essentials
Microsoft Defender
|
Security
|
Pre-boot Authentication
Security lock slot (Lock sold separately)
Optional Fingerprint Reader (sold separately)
TPM 1.2/2.02
|
